24GHz Blind Spot Detection Radar System

Advanced Driving Safety with Real-Time Blind Spot Monitoring

Upgrade your vehicle with the 24GHz Blind Spot Detection Radar System — a powerful safety assistant designed to help you change lanes with confidence and avoid hidden dangers. Using millimeter wave radar technology, this system monitors your blind spots in real time and alerts you instantly when a risk is detected.

How the System Works

24GHz Millimeter Wave Radar Technology

This system uses advanced 24GHz radar sensors that can penetrate fog, smoke, and dust, ensuring reliable detection in all weather conditions. It continuously scans your vehicle’s side and rear blind zones.

Real-Time Object Detection

The radar detects moving objects such as:

• Cars
• Motorcycles
• Pedestrians

It calculates their speed, angle, and relative distance to determine potential collision risks.

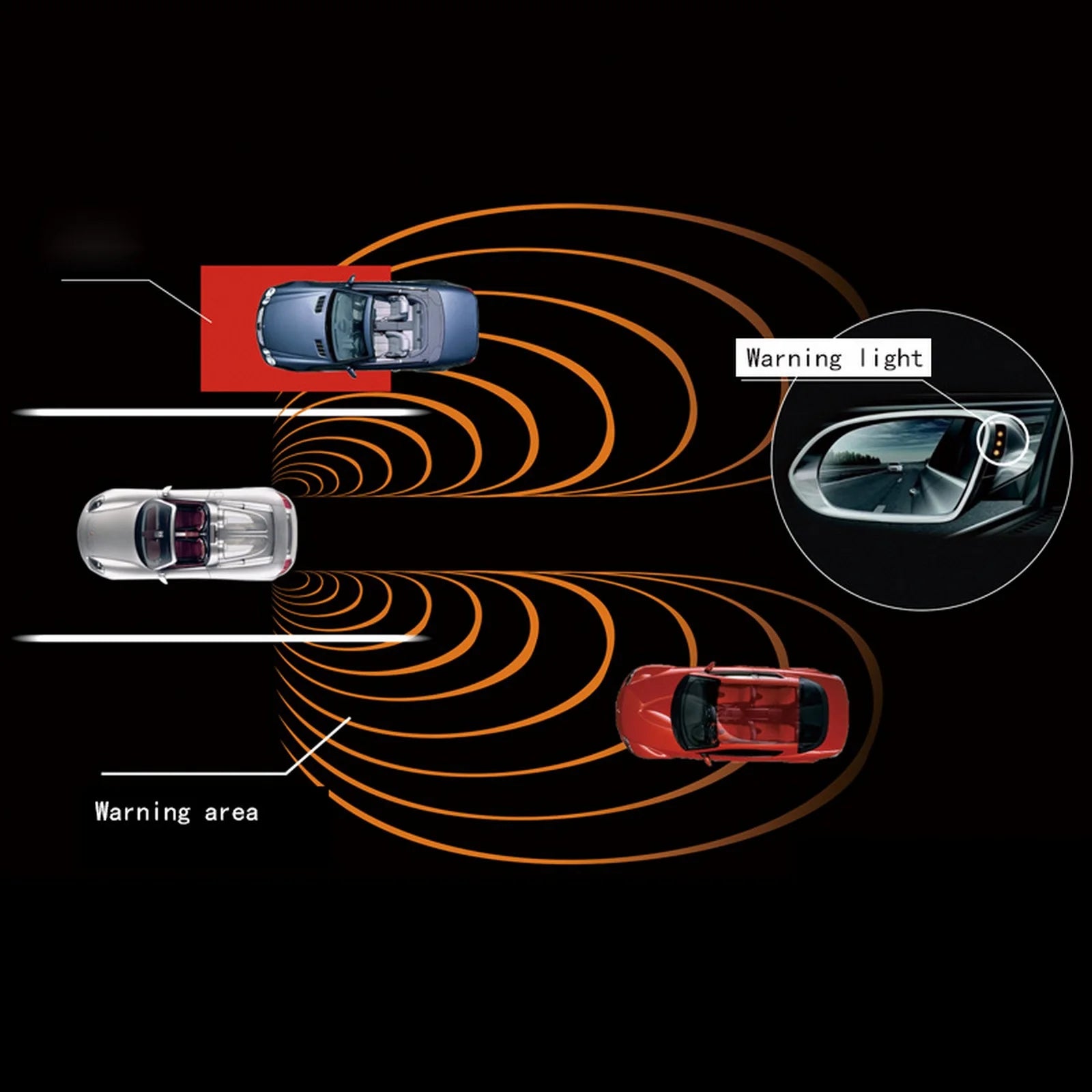

Smart Warning System

Level 1 Alert (Early Warning)

• LED warning light stays ON
• Indicates a vehicle is in your blind spot

Level 2 Alert (Immediate Danger)

• LED light flashes
• Buzzer sounds alert
• Triggered when you use turn signals or attempt to change lanes

Key Features

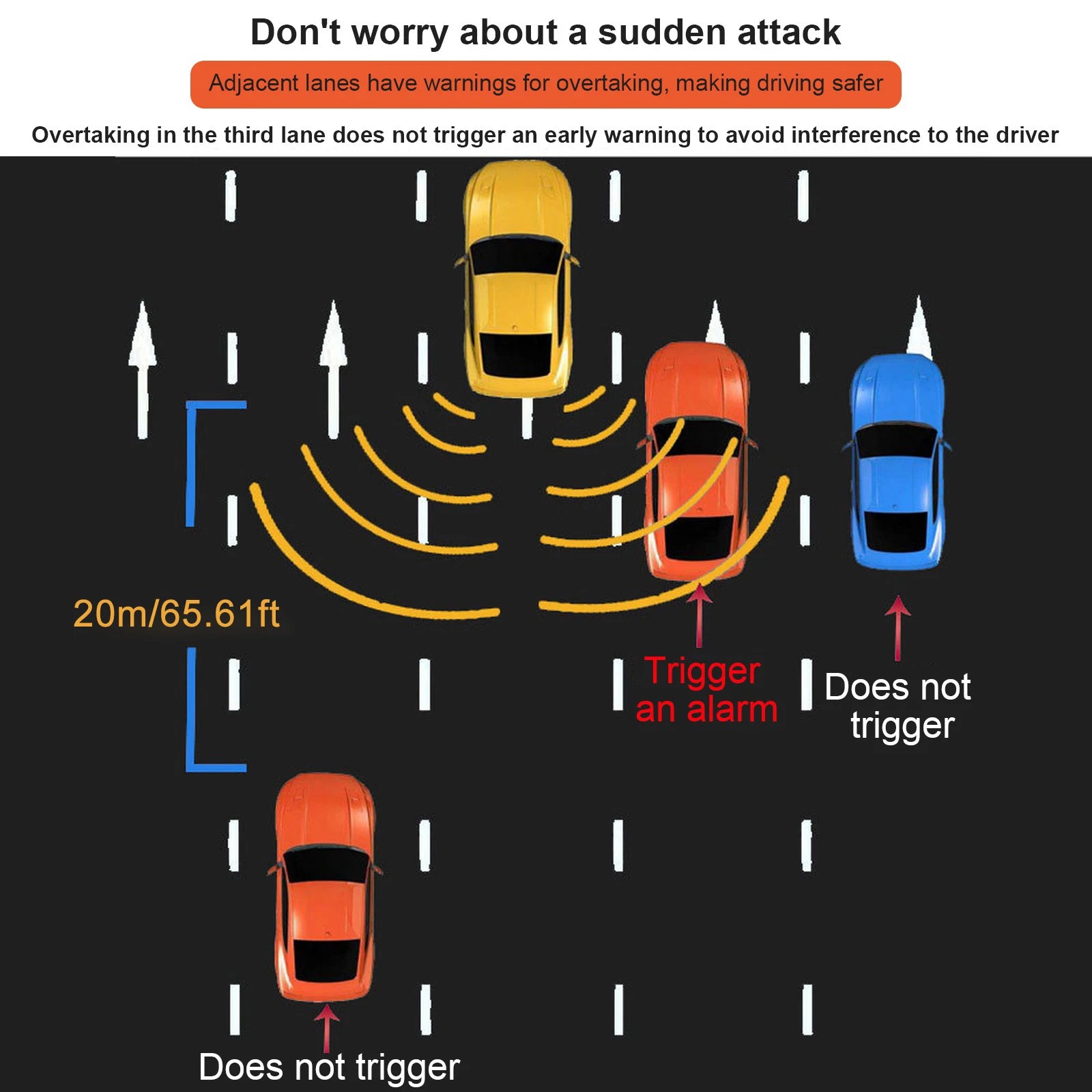

Blind Spot & Lane Change Assistance

Helps prevent side and rear collisions by alerting you to vehicles in adjacent lanes.

All-Weather Performance

Reliable detection in rain, fog, dust, and low visibility conditions thanks to radar technology.

Intelligent Detection System

• Detects moving objects only (reduces false alarms)
• No alert for stationary objects when there’s no collision risk
• Smart logic avoids unnecessary warnings in safe situations

Automatic Operation

• Activates when the vehicle starts
• Stops when the car is turned off

Door Opening Safety Alert

Warns you if vehicles or pedestrians are approaching when opening your car door.

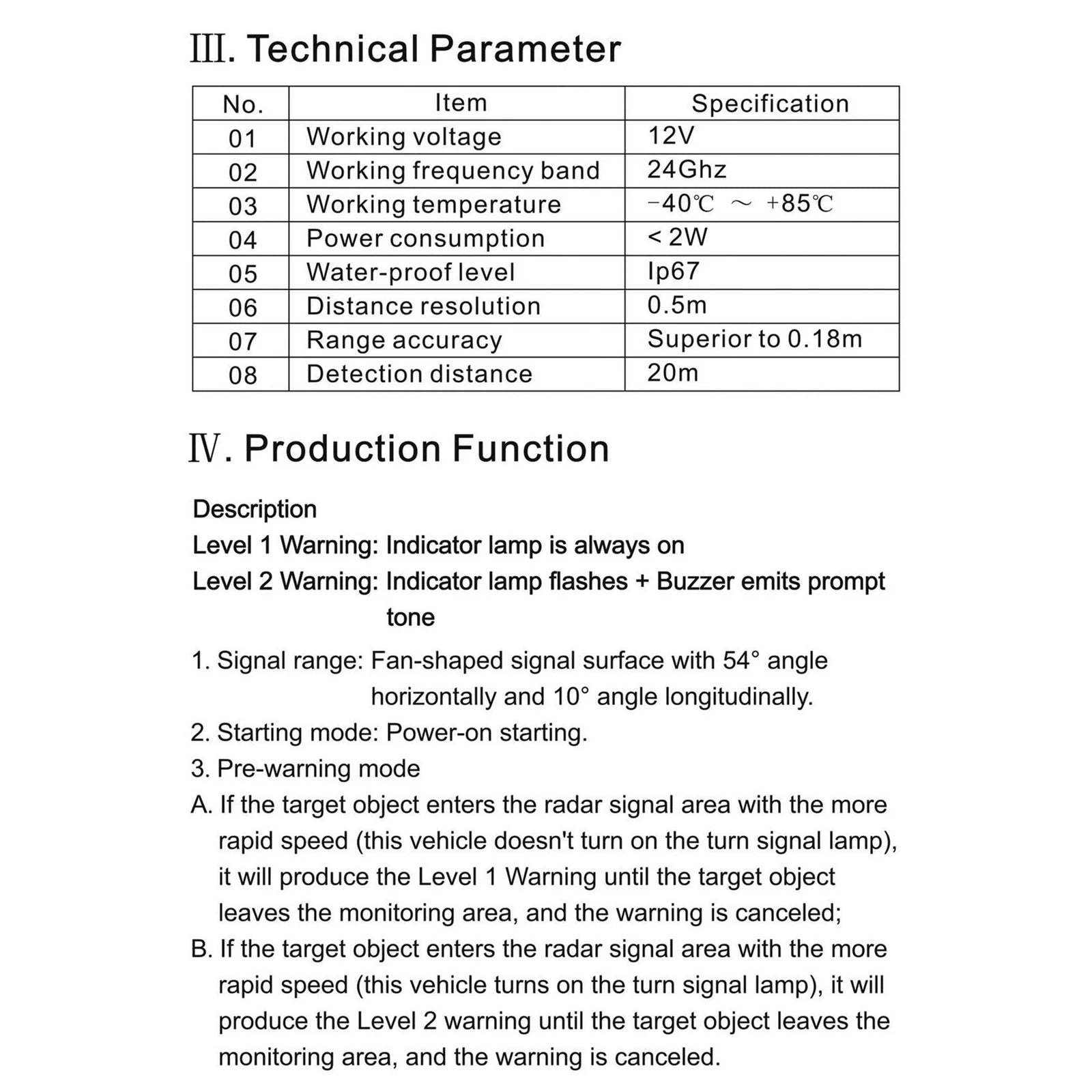

Technical Specifications

Performance

• Operating Frequency: 24GHz
• Detection Distance: Up to 20m (65.61 ft)
• Actual Detection Range: 8–10 meters
• Lateral Detection Range: 0.3m – 4m
• Distance Resolution: 0.5m
• Detection Accuracy: ≥96%
• Range Accuracy: ±3cm
• Material: ABS
• Waterproof Rating: IP67

Electrical

• Voltage: 12V
• Power Consumption: <2W (Max 5W)

Temperature Range

• Working Temperature: -40°C to +85°C
• Storage Temperature: -40°C to +85°C

Speed Compatibility

• Supports driving speeds up to 120 km/h

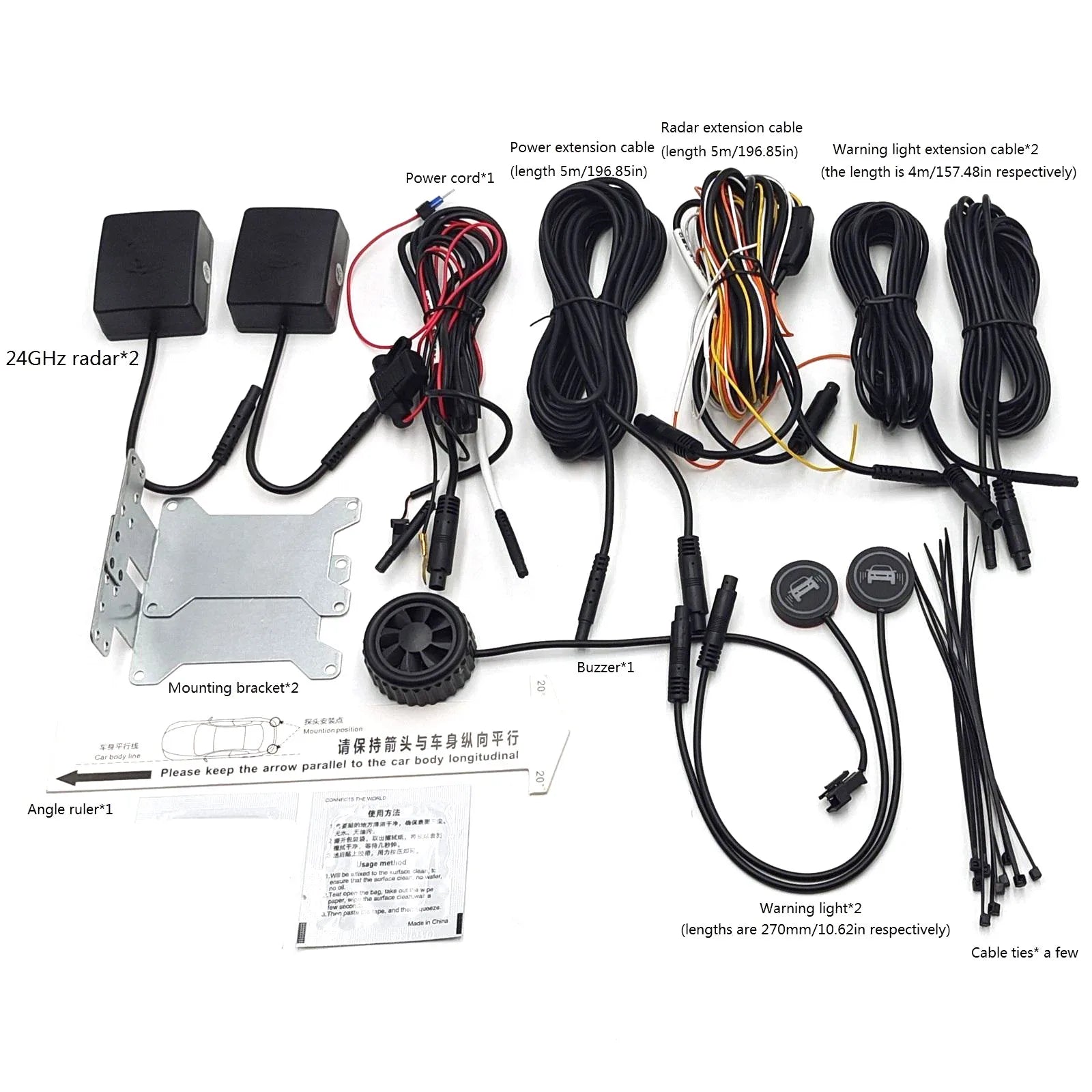

What’s Included

Complete Installation Kit

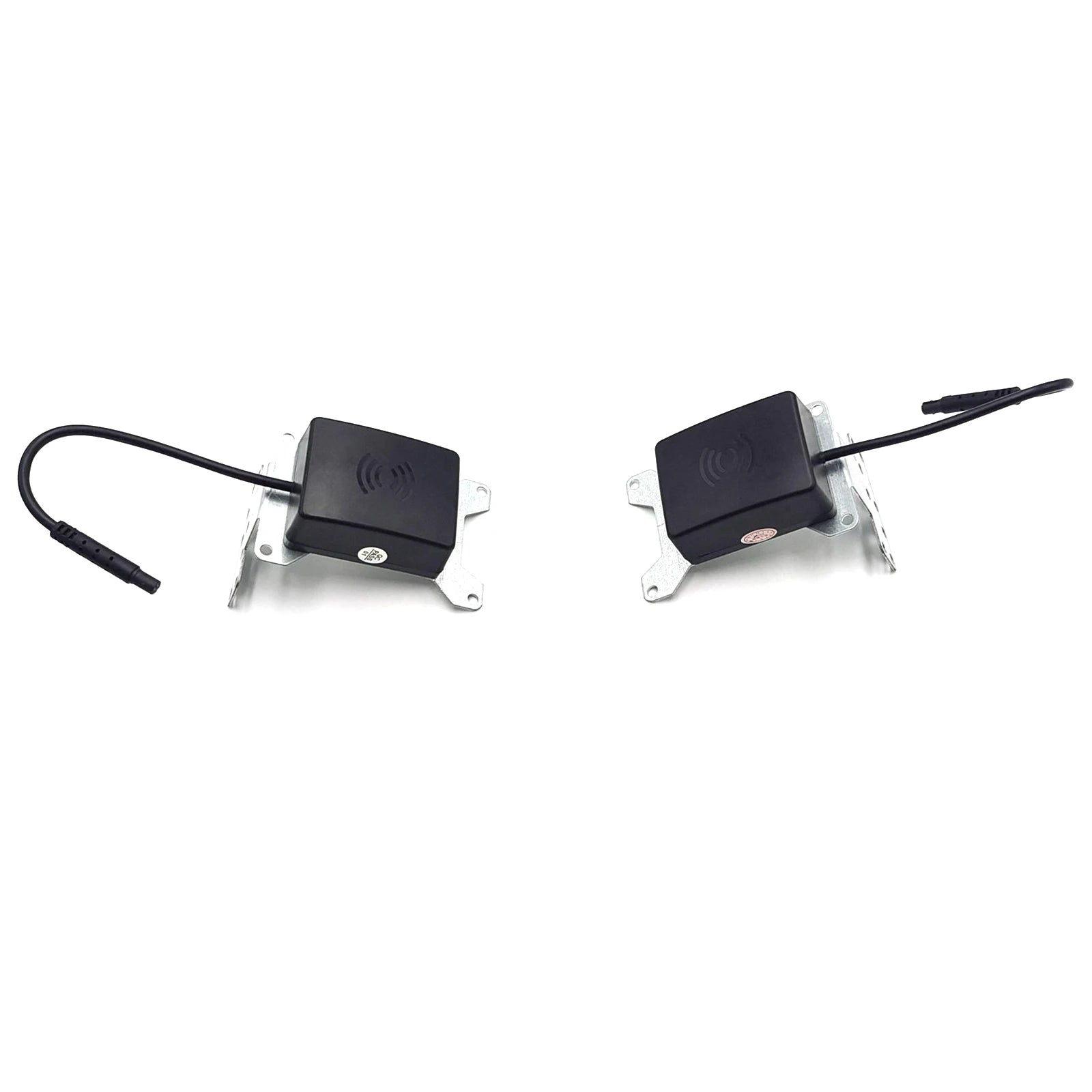

• 2 × Radar Sensors
• 1 × Control System
• 1 × Buzzer
• 2 × Warning Lights (LED Indicators)
• Power Cable & Extension Cables
• Radar Extension Cable (5m)
• Warning Light Extension Cables (4m each)
• Mounting Brackets
• Adhesives & Adhesion Promoter
• Cable Ties
• Angle Ruler
• User Manual
• Package Box

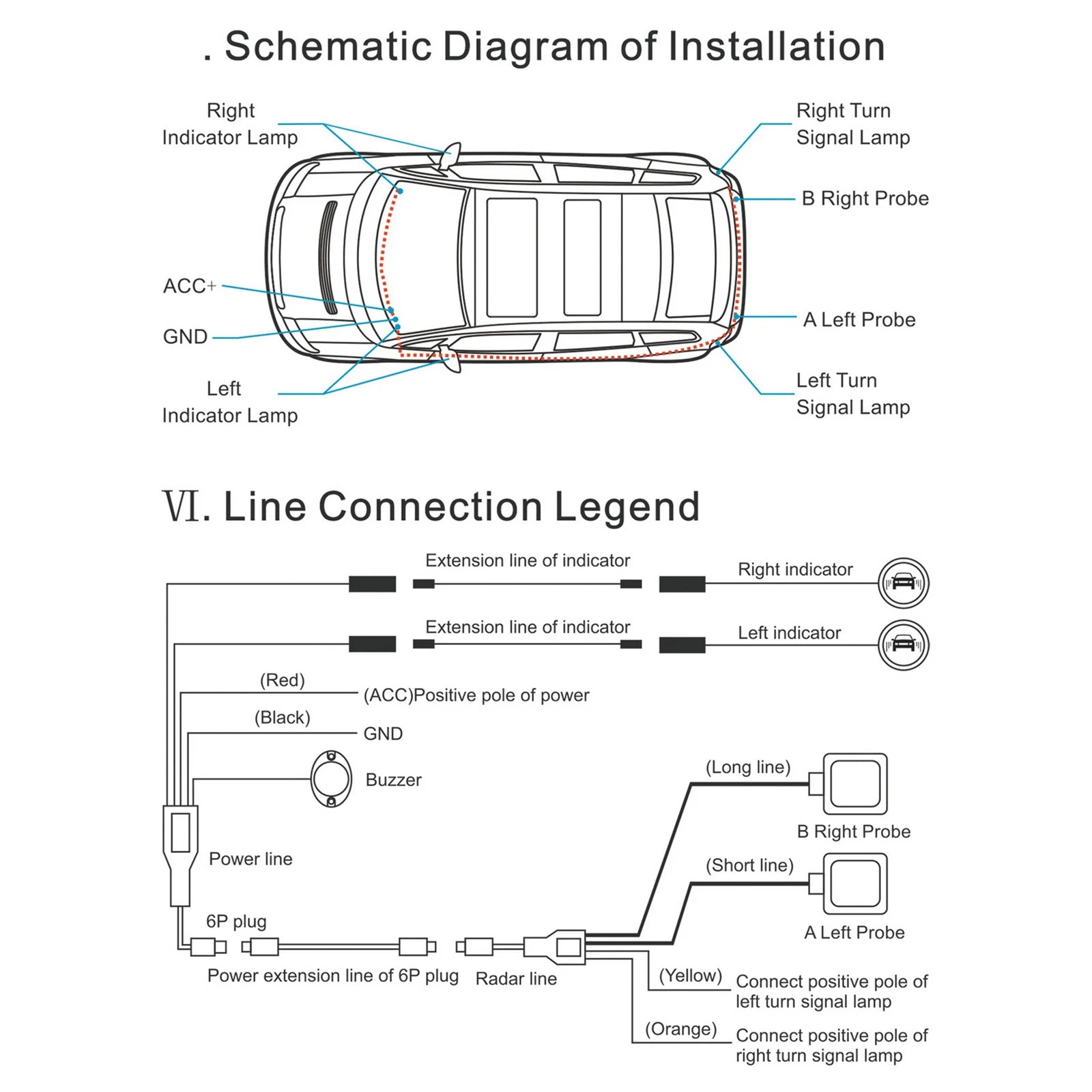

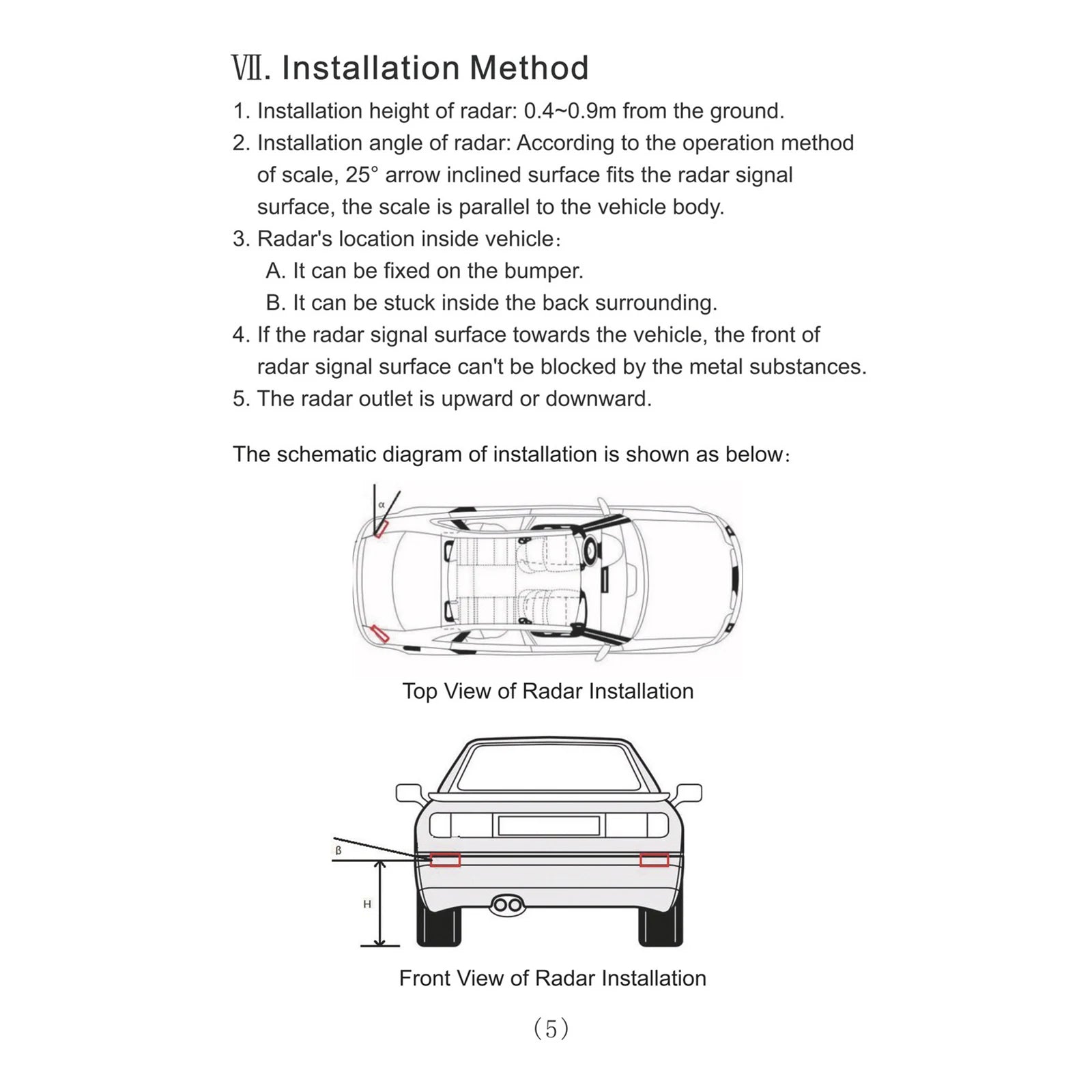

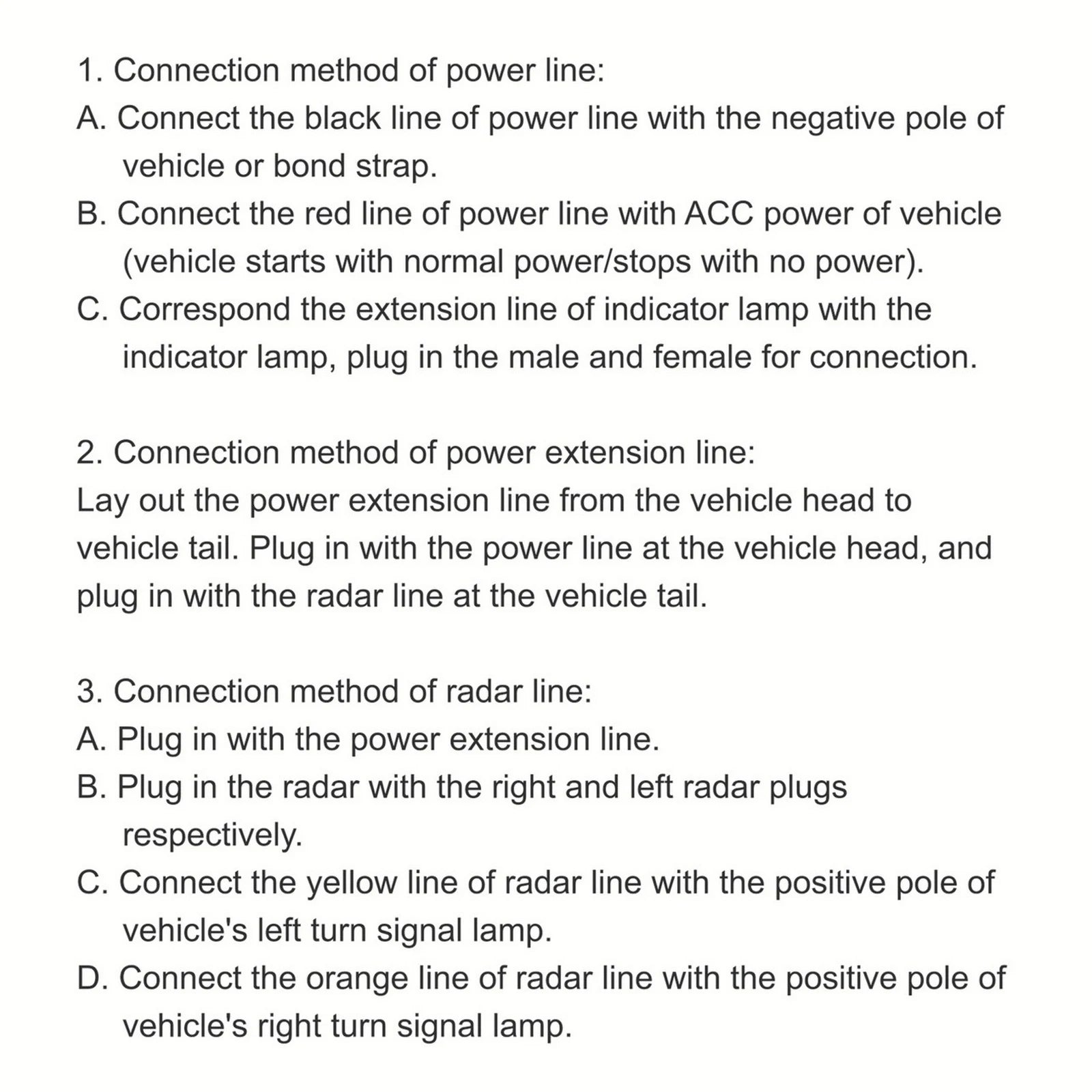

Installation Notes

Professional Installation Recommended

For best performance, installation should be done carefully following the instructions HERE

• Ensure correct radar angle
• Avoid placing metal objects in front of sensors

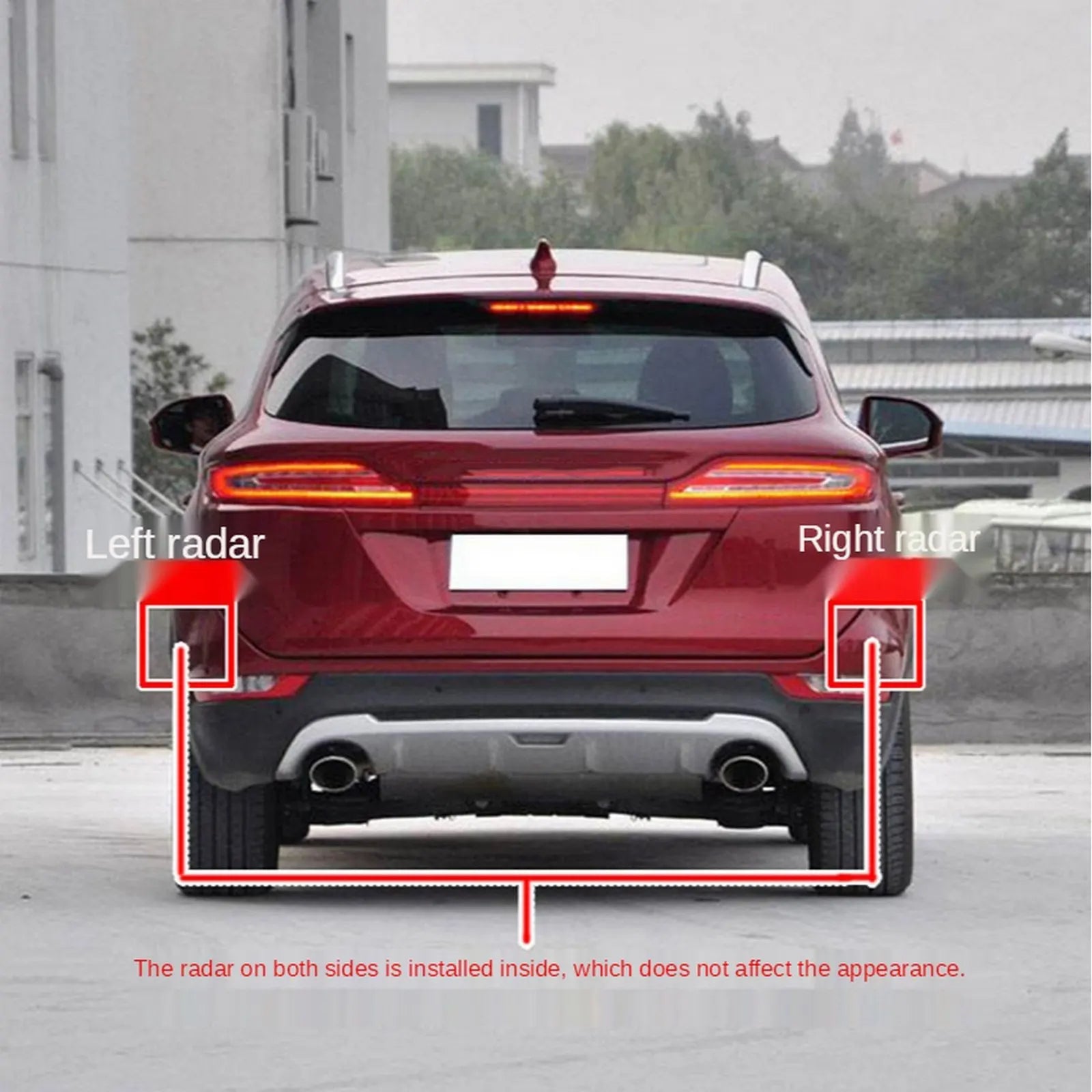

• Proper positioning is critical for accurate detection

Why This System is a Must-Have

Safer Lane Changes

Eliminates blind spots and helps prevent dangerous side collisions.

Smarter Driving Awareness

Gives you real-time insights into surrounding traffic conditions.

Peace of Mind on Every Drive

Whether you're on highways or city roads, drive with added confidence knowing your blind spots are covered.

Drive Smarter. Stay Safer.

Upgrade your vehicle with cutting-edge radar technology and experience a new level of driving safety and awareness.
