79GHz Blind Spot Radar System

Next-Level Driving Safety with Long-Range Radar Detection

Upgrade your vehicle with the 79GHz Blind Spot Radar System — a powerful, high-precision safety assistant designed to eliminate blind spots and make lane changes safer. With advanced millimeter wave radar and up to 50 meters of detection range, this system keeps you aware of surrounding vehicles in real time.

How the System Works

79GHz Millimeter Wave Radar Technology

This system uses a 79GHz radar sensor with dual transmitters and four receivers to scan your vehicle’s blind zones. It detects objects with high precision—even in fog, dust, and low visibility conditions.

Real-Time Motion Detection

• Detects moving vehicles and pedestrians only
• Ignores stationary objects to reduce false alarms
• Calculates speed, angle, and distance for accurate alerts

Smart Warning System

Level 1 Alert (Awareness Mode)

• LED warning light turns ON
• Indicates a vehicle is in your blind spot

Level 2 Alert (Danger Mode)

• LED light flashes
• Buzzer sounds
• Triggered when you signal or attempt to change lanes

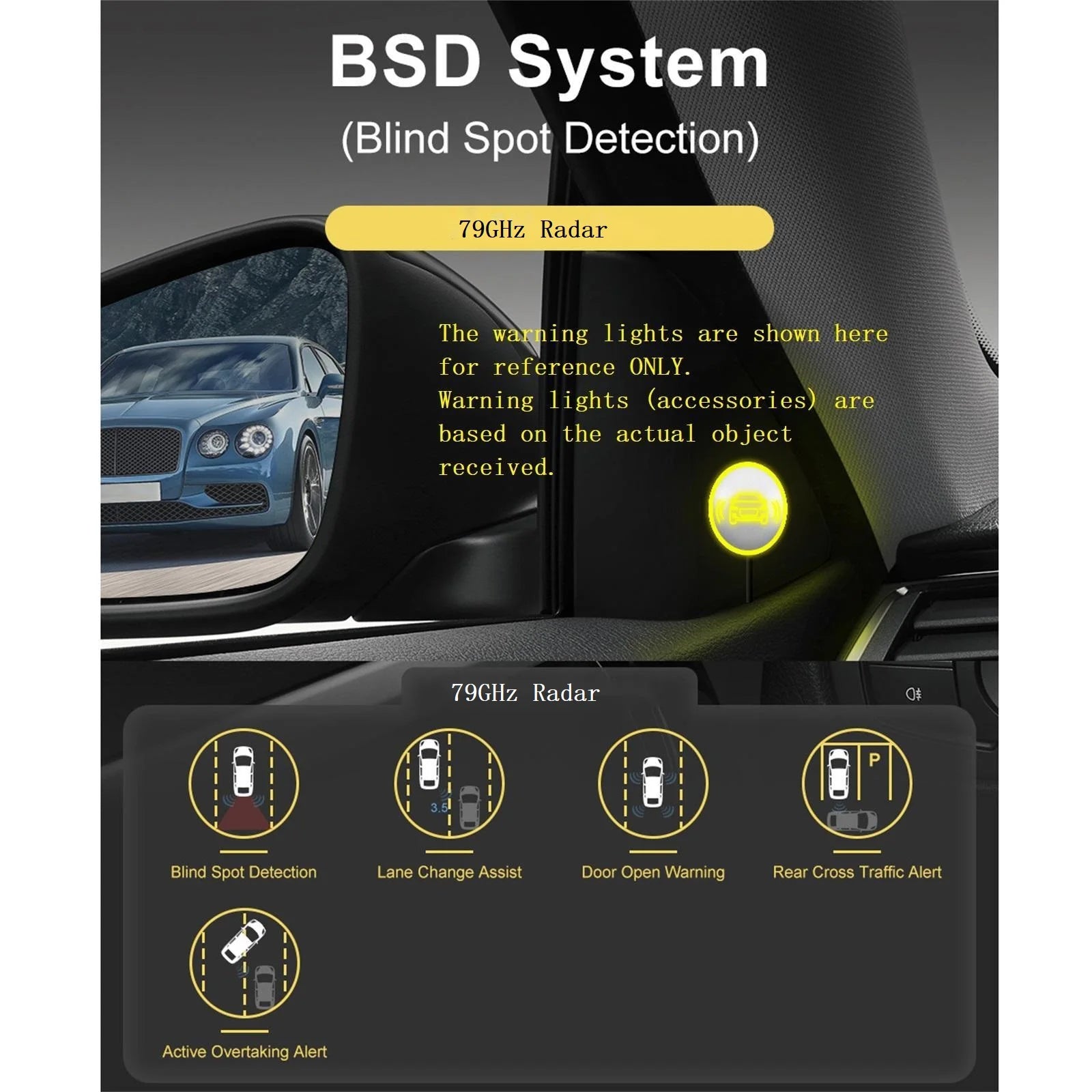

Key Safety Features

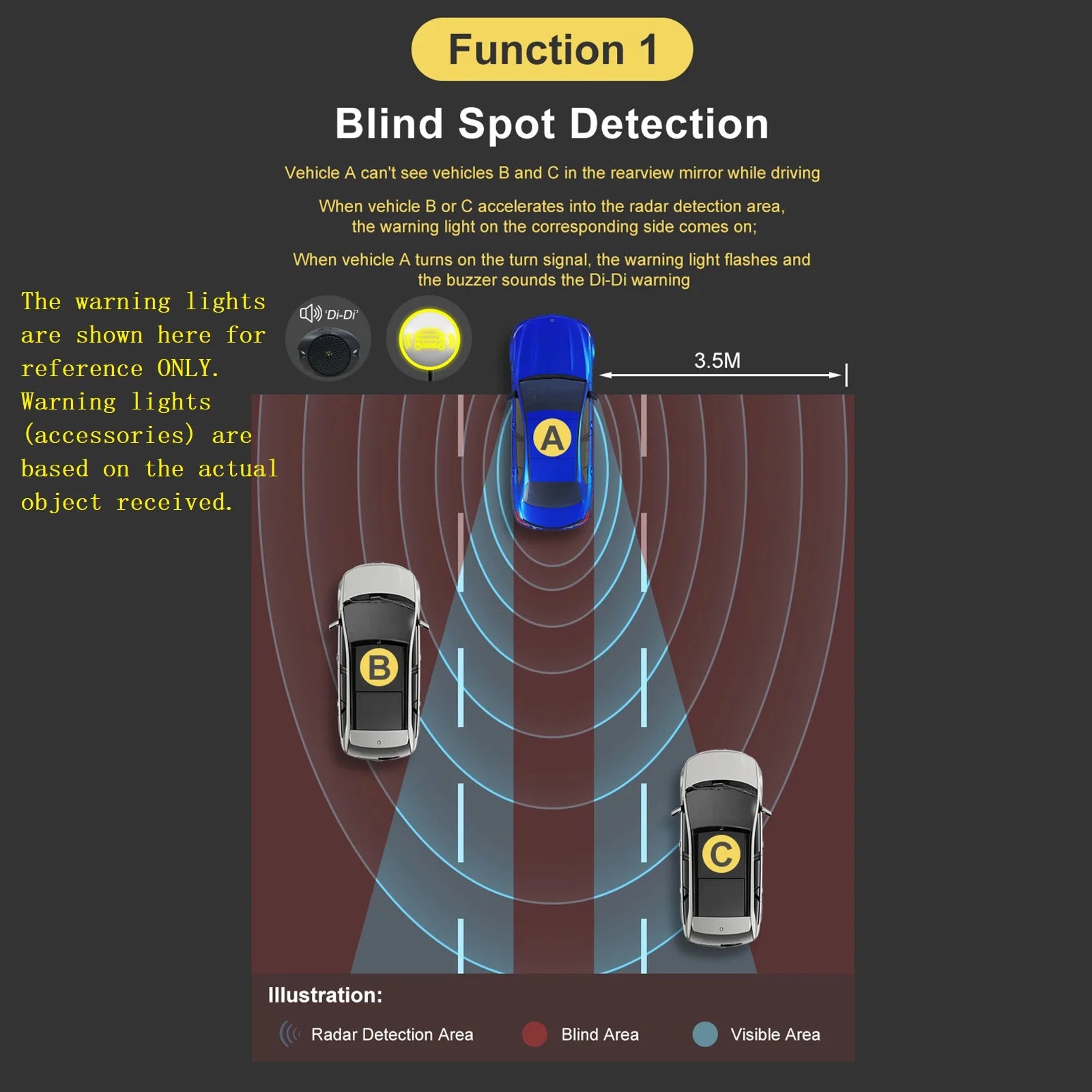

Blind Spot Detection (BSD)

Monitors side and rear blind zones and alerts you when a faster vehicle enters your detection area.

Lane Change Assist (LCA)

When you activate your turn signal, the system provides an audible warning if a vehicle is approaching in your blind spot.

Rear Cross Traffic Alert (RCTA)

Detects vehicles crossing behind you while reversing and alerts you instantly.

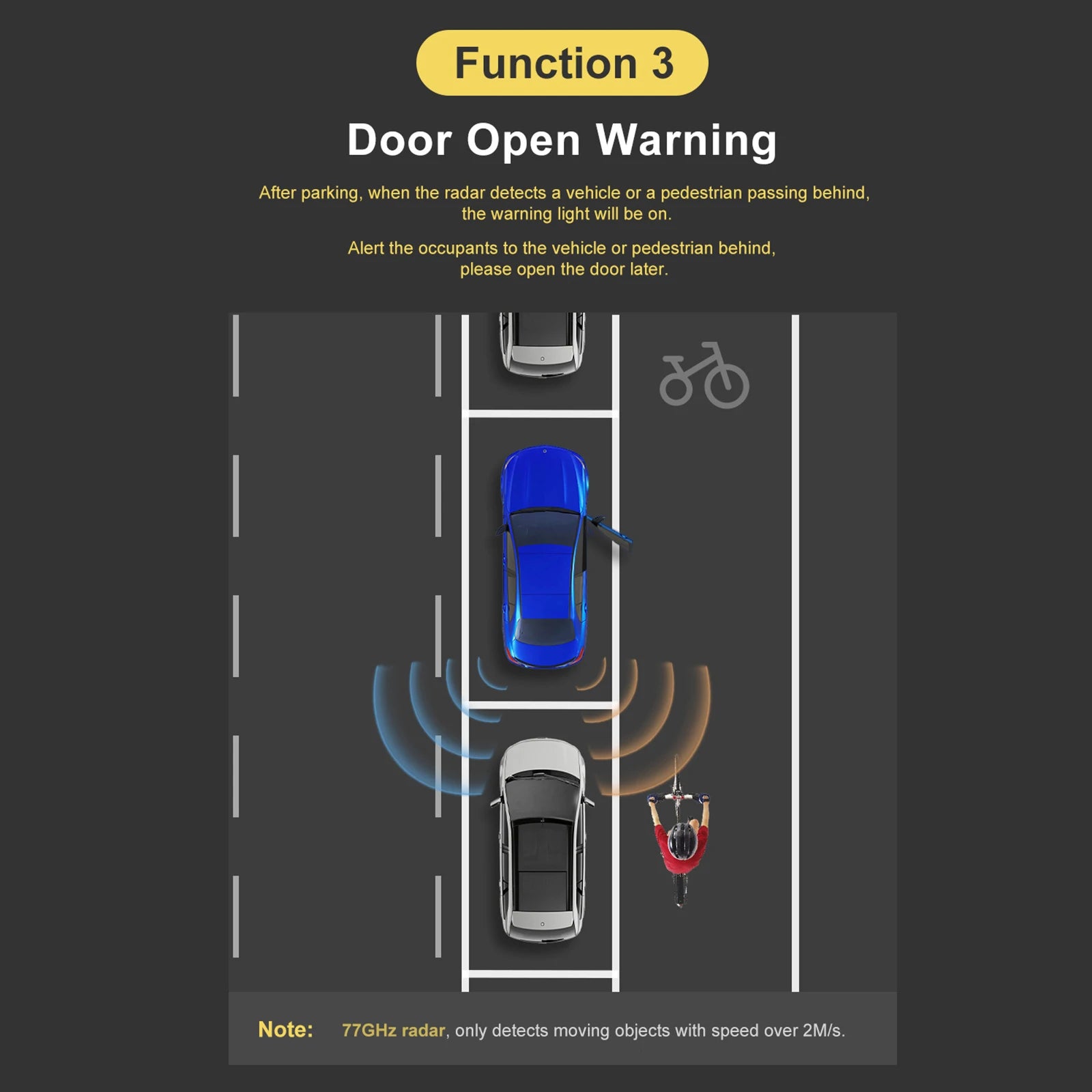

Door Open Warning (DOW)

Warns you of approaching vehicles or pedestrians when opening your car door.

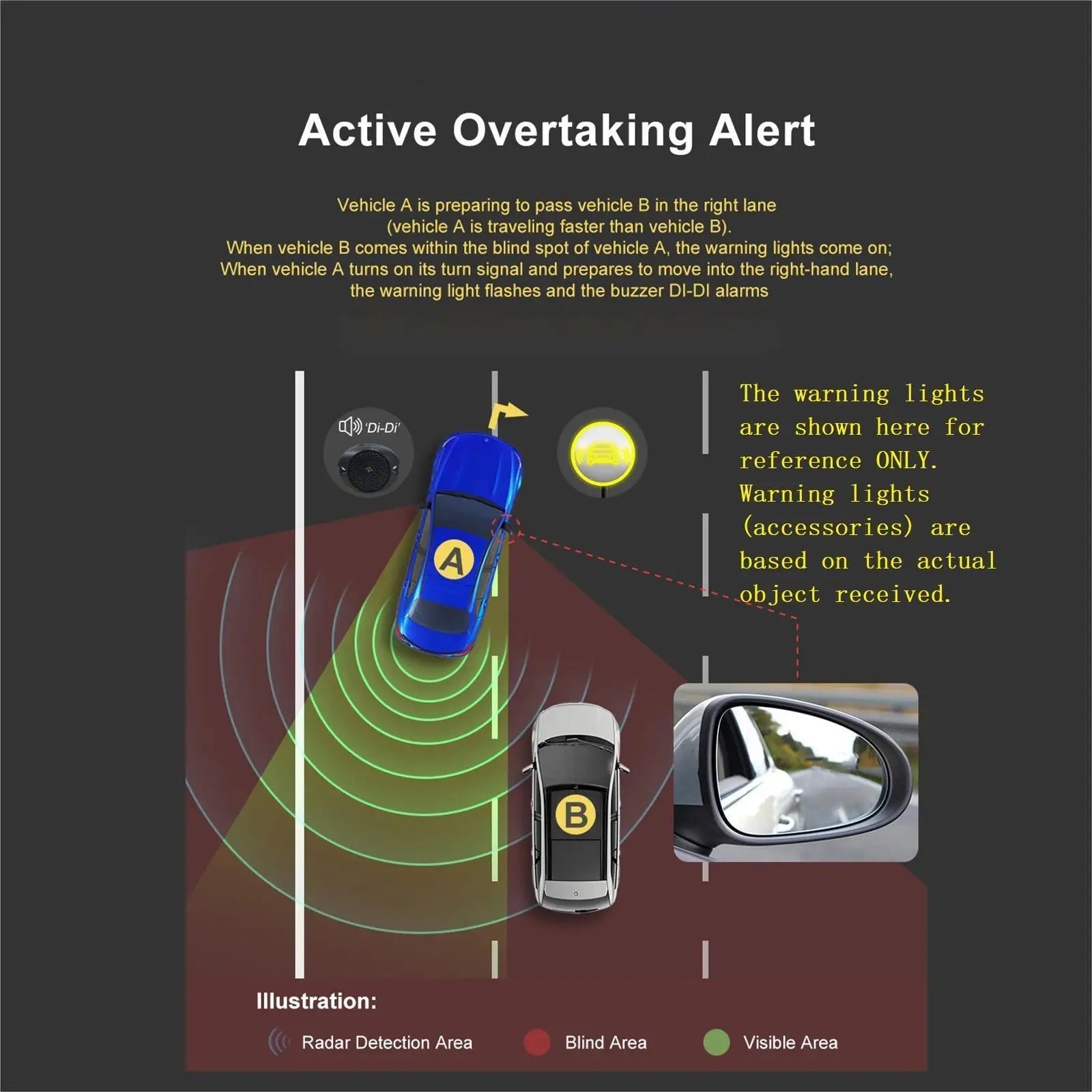

Active Overtaking Alert (AOA)

Provides alerts when overtaking other vehicles to enhance awareness.

Dual Color Warning Lights

Clear visual alerts using two-color LED indicators for better visibility and faster reaction.

Intelligent Driving Logic

Smart Detection Behavior

• No alert when vehicles behind are stationary (e.g., at traffic lights)
• No alert if surrounding vehicles pose no collision risk
• Alerts only when necessary to avoid distractions

Automatic Operation

• Activates when driving starts
• Works continuously while the vehicle is in motion

Technical Specifications

General Information

• Type: Blind Spot Radar System
• Material: High-Quality Automotive Components
• Installation: Visible Setup
• Condition: 100% Brand New

Performance

• Operating Frequency: 79GHz
• Detection Range: Up to 50 meters
• Start Activation Speed: 10 km/h
• Radar System: Dual transmitter + 4 receivers
• Detection Accuracy: High precision real-time tracking

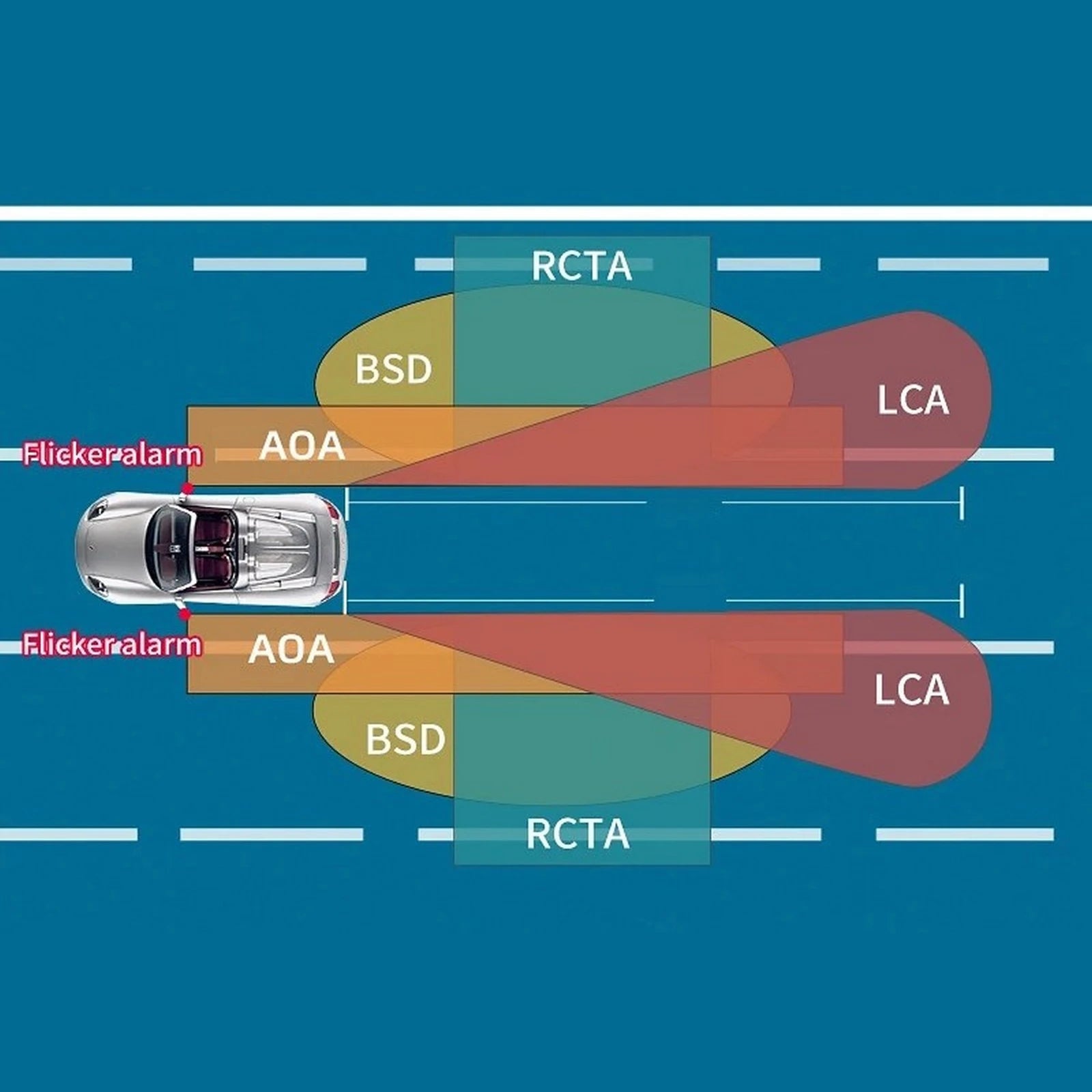

Functions Supported

• BSD (Blind Spot Detection)
• LCA (Lane Change Assist)
• RCTA (Rear Cross Traffic Alert)
• DOW (Door Open Warning)
• AOA (Active Overtaking Alert)

Alert Methods

• LED Warning Light (steady)
• LED Flash + Buzzer Sound

What’s Included

Complete Installation Kit

• 1 × 79GHz Radar Sensor
• 1 × Control Box
• 2 × Warning Lights
• 2 × Warning Light Extension Cables
• 1 × Buzzer
• 1 × Power Cable
• 1 × Radar Adapter Cable
• Mounting Accessories
• User Manual

Installation Notes

Professional Installation Recommended

• Ensure correct radar angle for optimal performance
• Avoid placing metal or irregular objects in front of sensors
• Follow installation instructions carefully for accurate detection

Why Choose This System?

Long-Range Detection Advantage

With up to 50M range, this system detects threats earlier than standard systems.

Safer Lane Changes

Reduces the risk of collisions when switching lanes on highways or busy roads.

All-Weather Reliability

Performs consistently in rain, fog, dust, and low visibility conditions.

Drive Smarter. Stay Protected.

Equip your vehicle with advanced radar technology and experience a new level of awareness, safety, and confidence every time you drive.
